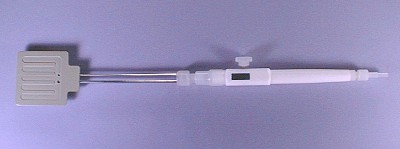

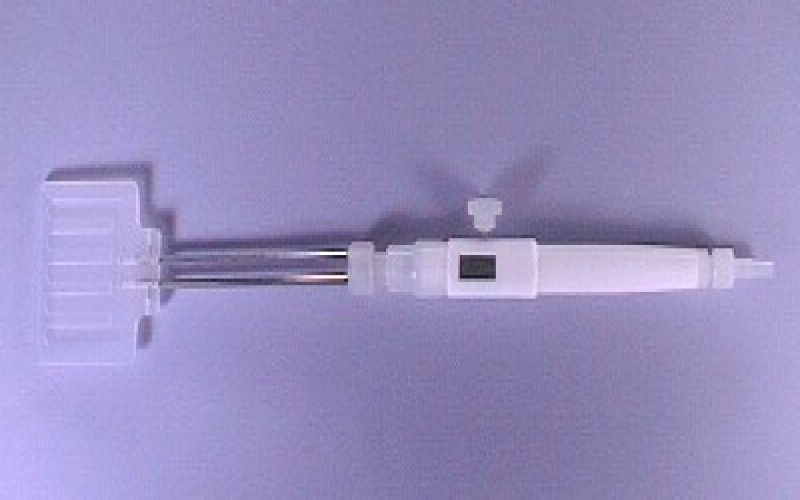

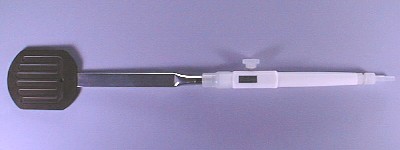

12吋晶片用之防酸系列真空吸筆
為了處理半導體12吋晶片而設計
筆身為鐵弗龍材質
固定式
| 項目 | 閥門種類 | 吸筆頭材質 | 筆身 | 吸筆頭 |
|---|---|---|---|---|
| F001-Y-15-3F | NC | PCTFE | F001-Y | 15-3F |
| F001-Y-15-PK | NC | PEEK | F001-Y | 15-PK |
| F001-Y-15-VP | NC | Vespel(R) | F001-Y | 15-VP |
| F002-Y-15-3F | NO | PCTFE | F002-Y | 15-3F |
| F002-Y-15-PK | NO | PEEK | F002-Y | 15-PK |
| F002-Y-15-VP | NO | Vespel(R) | F002-Y | 15-VP |
| F003-Y-15-3F | NO+SW | PCTFE | F003-Y | 15-3F |
| F003-Y-15-PK | NO+SW | PEEK | F003-Y | 15-PK |
| F003-Y-15-VP | NO+SW | Vespel(R) | F003-Y | 15-VP |
請分別訂購筆身與吸筆頭
例如 F001-Y 和 15-3F
F001/2/3-Y-15-3F
長度: 313mm, 重量: 51g
F001/2/3-Y-15-PK
長度: 313mm, 重量: 46g
F001/2/3-Y-15-VP
長度: 330mm, 重量: 53g
