6吋晶片用之防酸系列真空吸筆
為了處理半導體6吋晶片而設計
筆身為鐵弗龍材質
直式固定接頭
| 項目 | 閥門種類 | 吸筆頭材質 | 筆身 | 吸筆頭 |
|---|---|---|---|---|
| F001-Z-03-3F | NC | PCTFE | F001-Z (with 110) | 03-3F |
| F001-Z-03-PK | NC | PEEK | F001-Z (with 110) | 03-PK |
| F001-Z-03-VP | NC | Vespel(R) | F001-Z (with 110) | 03-VP |
| F002-Z-03-3F | NO | PCTFE | F002-Z (with 110) | 03-3F |
| F002-Z-03-PK | NO | PEEK | F002-Z (with 110) | 03-PK |
| F002-Z-03-VP | NO | Vespel(R) | F002-Z (with 110) | 03-VP |
| F003-Z-03-3F | NO+SW | PCTFE | F003-Z (with 110) | 03-3F |
| F003-Z-03-PK | NO+SW | PEEK | F003-Z (with 110) | 03-PK |
| F003-Z-03-VP | NO+SW | Vespel(R) | F003-Z (with 110) | 03-VP |
請分別訂購筆身與吸筆頭
例如 F001-Z (with 110) 和 03-3F

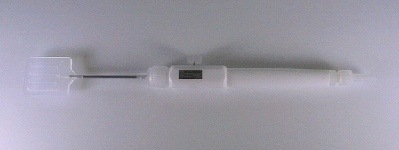

F001/2/3-Z-03-3F
長度: 224mm, 重量: 37g

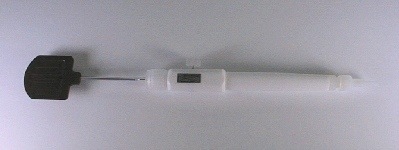

F001/2/3-Z-03-PK
長度: 224mm, 重量: 35g

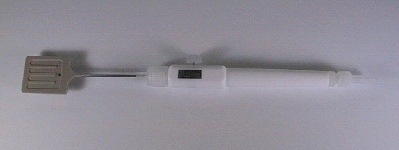

F001/2/3-Z-03-VP
長度: 242mm, 重量: 36g
