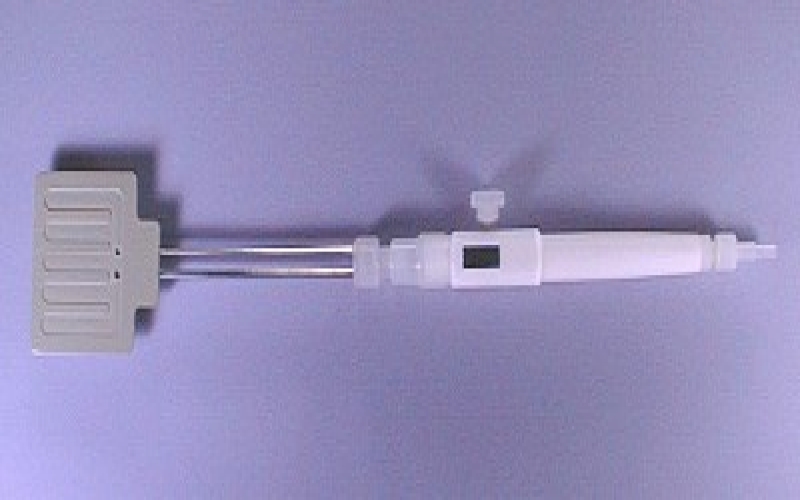

8吋晶片用之防酸系列真空吸筆

• 為了處理半導體8吋晶片而設計

• 筆身為鐵弗龍材質

• 球狀旋轉接頭



• 項目	閥門種類	吸筆頭材質	筆身	吸筆頭
  F001-X-05-3F	NC	PCTFE	F001-X (with 100)	05-3F
  F001-X-05-PK	NC	PEEK	F001-X (with 100)	05-PK
  F001-X-05-VP	NC	Vespel(R)	F001-X (with 100)	05-VP
  F002-X-05-3F	NO	PCTFE	F002-X (with 100)	05-3F
  F002-X-05-PK	NO	PEEK	F002-X (with 100)	05-PK
  F002-X-05-VP	NO	Vespel(R)	F002-X (with 100)	05-VP
  F003-X-05-3F	NO+SW	PCTFE	F003-X (with 100)	05-3F
  F003-X-05-PK	NO+SW	PEEK	F003-X (with 100)	05-PK
  F003-X-05-VP	NO+SW	Vespel(R)	F003-X (with 100)	05-VP

• 請分別訂購筆身與吸筆頭

• 例如 F001-X (with 100) 和 05-3F

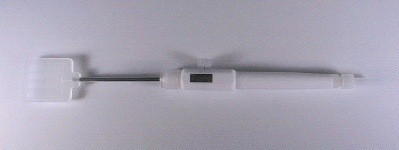

  F001/2/3-X-05-3F

  長度: 248mm, 重量: 40g

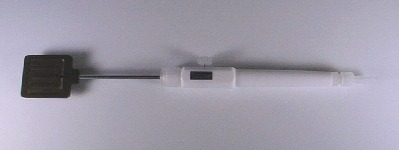

  F001/2/3-X-05-PK

  長度: 248mm, 重量: 38g

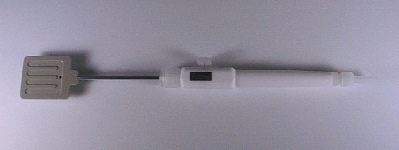

  F001/2/3-X-05-VP

  長度: 248mm, 重量: 38g
